Description
Reliable protection for lithium ion battery charging operations. The Lithium Ion Battery Charging Cabinet provides a controlled and compliant environment for charging and storing lithium ion batteries in industrial, laboratory, and commercial settings.
Constructed to meet the requirements of EN 14470-1 and designed with reference to VDMA 24994, the cabinet maintains structural integrity and limits heat transfer for up to 90 minutes. This extended resistance rating supports safe evacuation, helps emergency teams initiate response, and reduces the likelihood of fire spreading beyond the source.
The cabinet includes integrated smoke detection and automatic power cut off to stop charging in the event of early fire indicators. These layers of protection reduce the risk of thermal runaway during multi device charging. Perforated steel shelves promote consistent airflow and heat dissipation, while industrial grade PDU sockets support organised power management within the cabinet. Internal and external fire protection features limit the escalation of battery related incidents and help businesses meet their HSWA obligations regarding hazardous energy management.
KEY FEATURES AND BENEFITS
- 90 minute fire resistant construction for improved safety and longer evacuation time
- Certified to EN 14470-1 and designed with reference to VDMA 24994 thermal runaway conditions
- Integrated smoke detector with automatic power cut off to prevent continued charging in the event of a fire

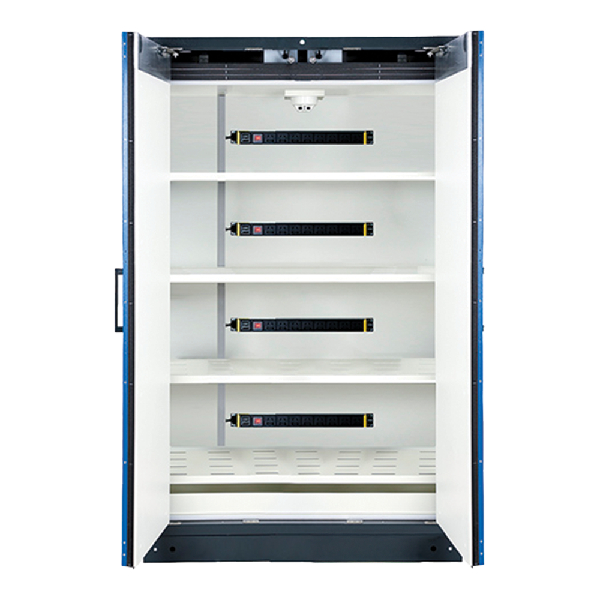

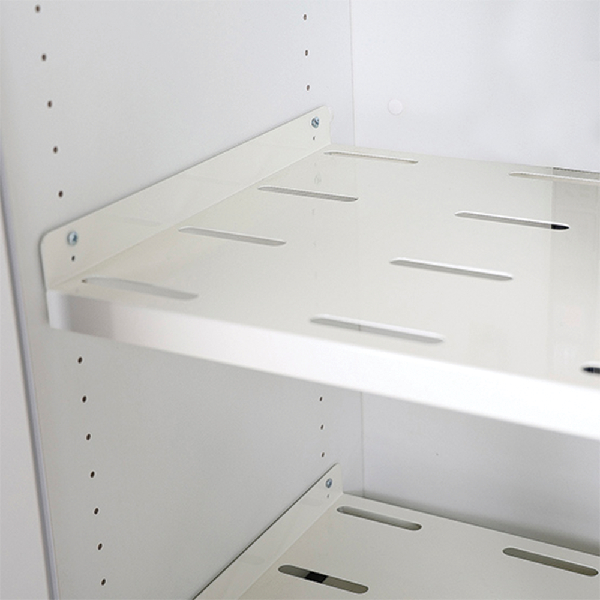

- Perforated steel shelves for improved cooling and airflow
- Industrial grade PDU sockets for multi device charging
- Fire containment design reduces internal and external fire spread
- Helps reduce risks associated with lithium ion battery ignition, overheating, or failure
- Supports safe energy storage practices in environments with high lithium ion battery usage
- Warranty: 10 years for cabinet body, 1 year for all other components.
When the smoke alarm is triggered:
- The fan turns off.
- The alarm audio stays on.
- The power sockets turn off.
- The main power stays on.
SPECIFICATIONS
| Fire Resistance Rating (Minutes) | 90 |
| Standard Equipped PDU Industrial Sockets (Pieces) | 4 (32 sockets in total) |
| Door Type | Double Door |
| Colour | Blue |
| Operating Voltage | AC 220V / 50Hz |
| External Dimensions in cm (HxWxD) | 195 x 116 x 61.5 |
| Packing Dimensions in cm (HxWxD) | 198 x 123 x 73 |
| Standard Adjustable Steel Shelves (Pieces) | 4 |
| Shelf Load Bearing Capacity (kg) | 75 |
| Rated Current | 10A |
| Diameter of the air outlet connection (mm) | 75 |
| Certified Standard | EN 14470-1 |
