Description

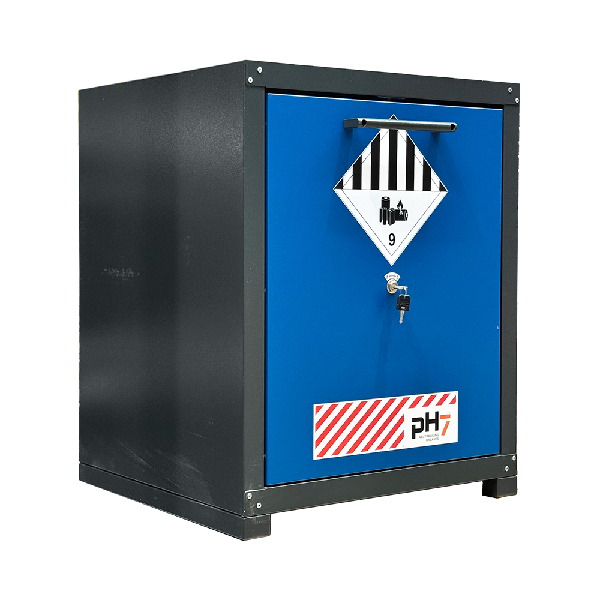

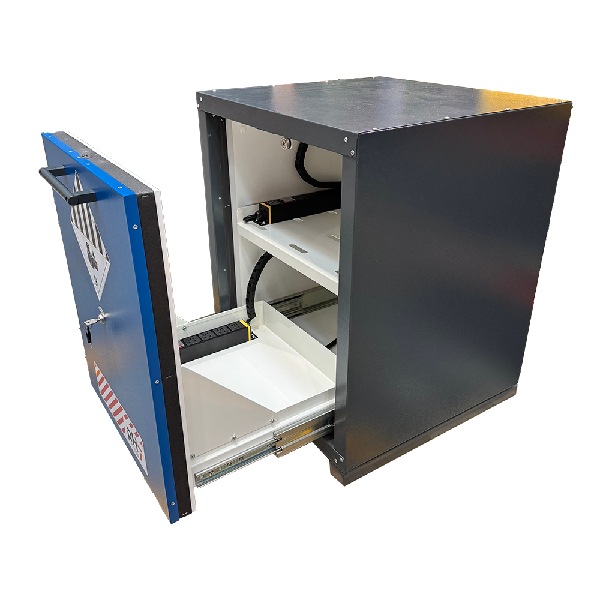

High performance protection for lithium ion battery charging environments. The Lithium Ion Battery Charging Drawer is engineered to reduce fire risk when charging, storing, or cycling lithium ion batteries on site. Built to EN 14470 1 with 90 minutes of certified fire resistance and tested against the thermal runaway conditions outlined in VDMA 24994, this drawer provides controlled containment when batteries fail, ignite, or overheat.
The long duration fire resistance rating helps maintain structural integrity and reduce heat transfer for up to 90 minutes. This provides ample escape time for building occupants, supports orderly emergency response, and limits the chances of fire spreading to other areas of the facility.
Each drawer compartment includes steel perforated shelving for improved heat dissipation, integrated smoke detection with LED status indication, and industrial grade PDU outlets to support simultaneous charging. Fire resistant cable entry ports maintain a sealed environment, ensuring any internal incident is isolated and cannot spread beyond the drawer.
For sites managing large amounts of lithium ion battery powered tools and equipment, this drawer supports HSWA risk management obligations while protecting people, property, and assets.
KEY FEATURES AND BENEFITS
- Complies with EN 14470-1 for 90 minute fire resistance
- Extended resistance time provides valuable evacuation time and improved incident control
- Meets VDMA 24994 test requirements for lithium ion battery thermal runaway conditions

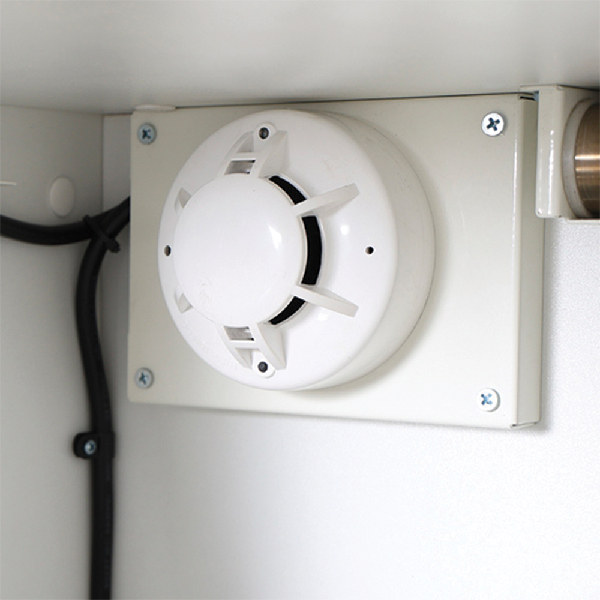

- Integrated smoke detection system with LED status indicator or audible visual alarm

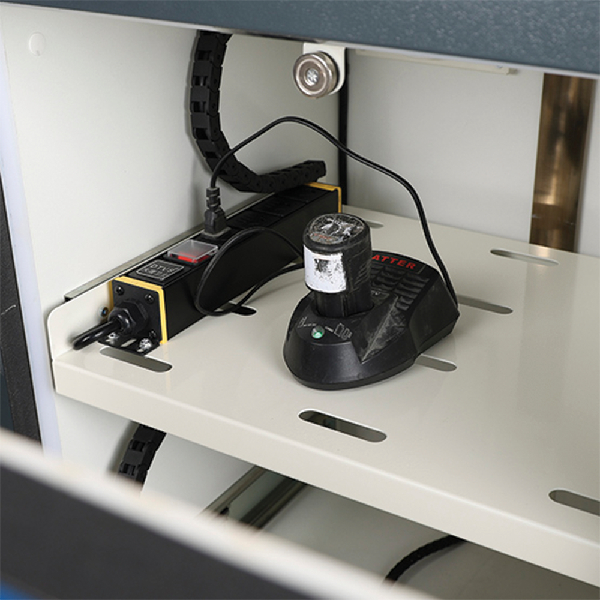

- Steel perforated shelves improve airflow and reduce heat build up during charging

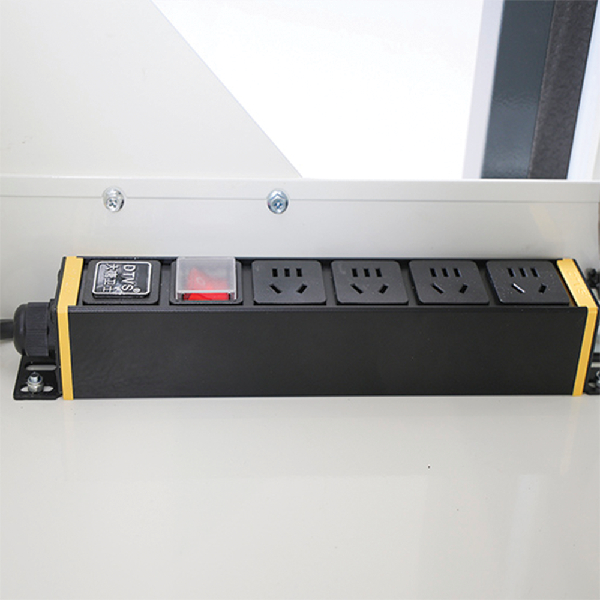

- Fitted with industrial PDU sockets that fits New Zealand standards
- Fire resistant cable connection ports sealed with fire mastic
- Compatible with 75mm ducting for extraction and forced ventilation
- Prevents flame ejection and restricts external surface temperatures during fire events
- Supports compliance with site risk management plans and HSWA safety obligations
- Warranty: 10 years for cabinet body, 1 year for all other components.
When the smoke alarm is triggered:
- The fan turns off.
- The alarm audio stays on.
- The power sockets turn off.
- The main power stays on.
SPECIFICATIONS
| Fire-resistance rating (minutes) | 90 |
| Door Type | Single/Sliding Door |
| Colour | Blue |
| Standard | EN 14470-1 |
| External Dimensions in cm (HxWxD) | 75x60x67 |
| Packing Dimensions in cm (HxWxD) | 89x67x79 |
| Standard adjustable steel shelves | 1 |
| Shelf load-bearing capacity (kg) | 50 |
| Operating Voltage | AC 220V/50Hz |
| Rated Current | 10A |
| Diameter of the air outlet connection (mm) | 75 |
| Standard equipped PDU industrial sockets | 2 (8-way in total) |
