Description

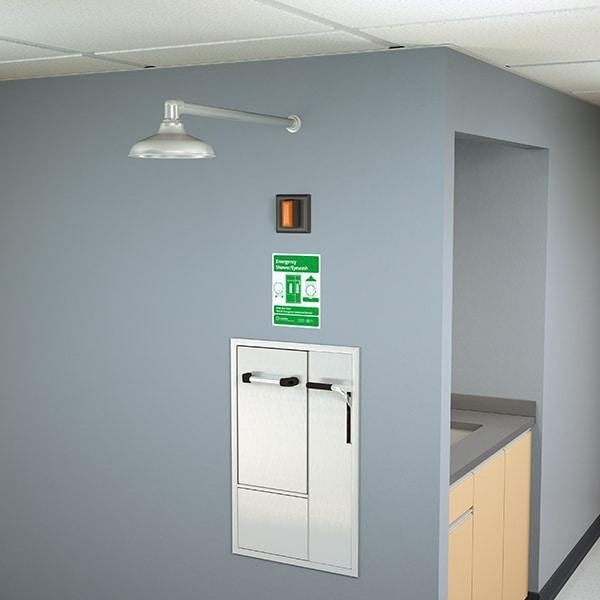

Application: Recessed barrier-free eye/face wash and shower safety station with wall mounted exposed shower head and drain pan. Stainless steel cover provides an attractive appearance and protects the unit when not in use. When activated, the cover serves as pan to collect wastewater and return it into the unit for drainage.
ADA Compliance: When installed at recommended mounting heights, unit complies with ADA requirements for accessibility by handicapped persons.
Shower Head: 10″ diameter stainless steel with 20 GPM flow control. Furnished with horizontal supply pipe and wall escutcheon.
Shower Valve: 1″ IPS brass stay-open ball valve with stainless steel “panic bar” actuator.

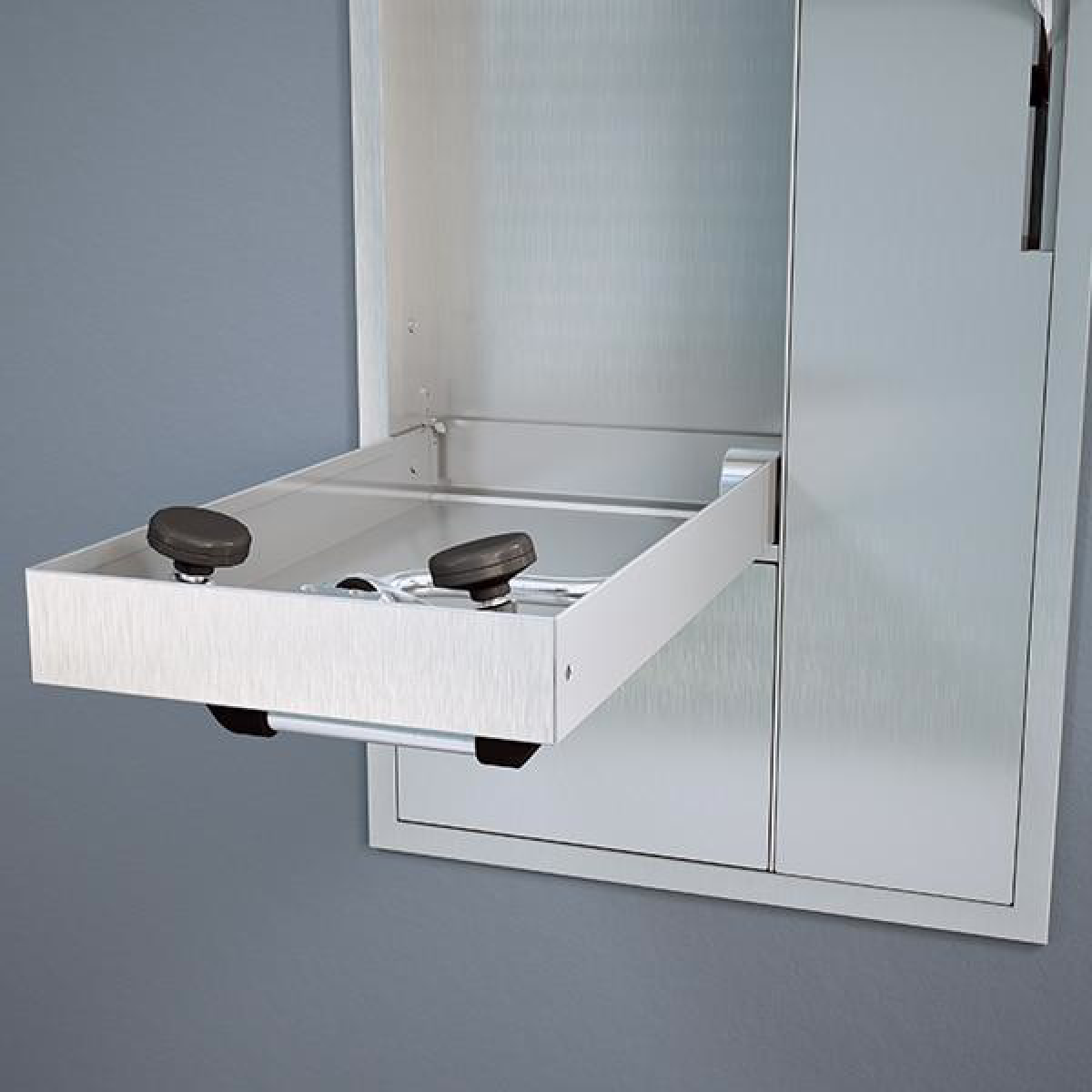

Cover/Drain Pan: 16 gauge stainless steel combination cover and drain pan. Grasping “panic bar” handle and opening cover pulls spray head assembly down from vertical to a horizontal position, activating water flow. While the unit is in operation, wastewater is collected in the drain pan and returned into the cabinet for drainage. The unit remains in operation until the cover is returned to a closed position.
Eye/Face Wash Spray Head Assembly: Two FS-Plus spray heads mounted on supply arms. Each spray head has individually adjustable flow control and filter to remove impurities from the water flow.
Eye/Face Wash Valve: 1/2″ IPS brass rotating plug-type valve with O-ring seals. Furnished with an in-line strainer to protect the valve from debris and foreign matter.
Mounting: 16 gauge stainless steel cabinet with flange featuring 3/8″ return for recessed mounting in wall. The unit fits in standard 3-5/8″ deep wall.
Pipe And Fittings: Exposed pipe and escutcheon are brushed stainless steel.
Supply: 1″ NPT female inlet.
Waste: 2″ NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment
